Mounting Options
Flat Deck Mounting
The flat mounting base comes standard with every crane kit, the design of this is to be mounted on any flat horizontal surface. Ideal for fitting on
ute and truck decks and in the back of service vans, or on boat jetties. There is no limit on the fitting application, BACKAID can offer extra base plates so you can have the option to fit out to a range of fleet vehicles where your BACKAID crane can be shared between.
Always check there is adequate strength in the structure you intend to fit
to.

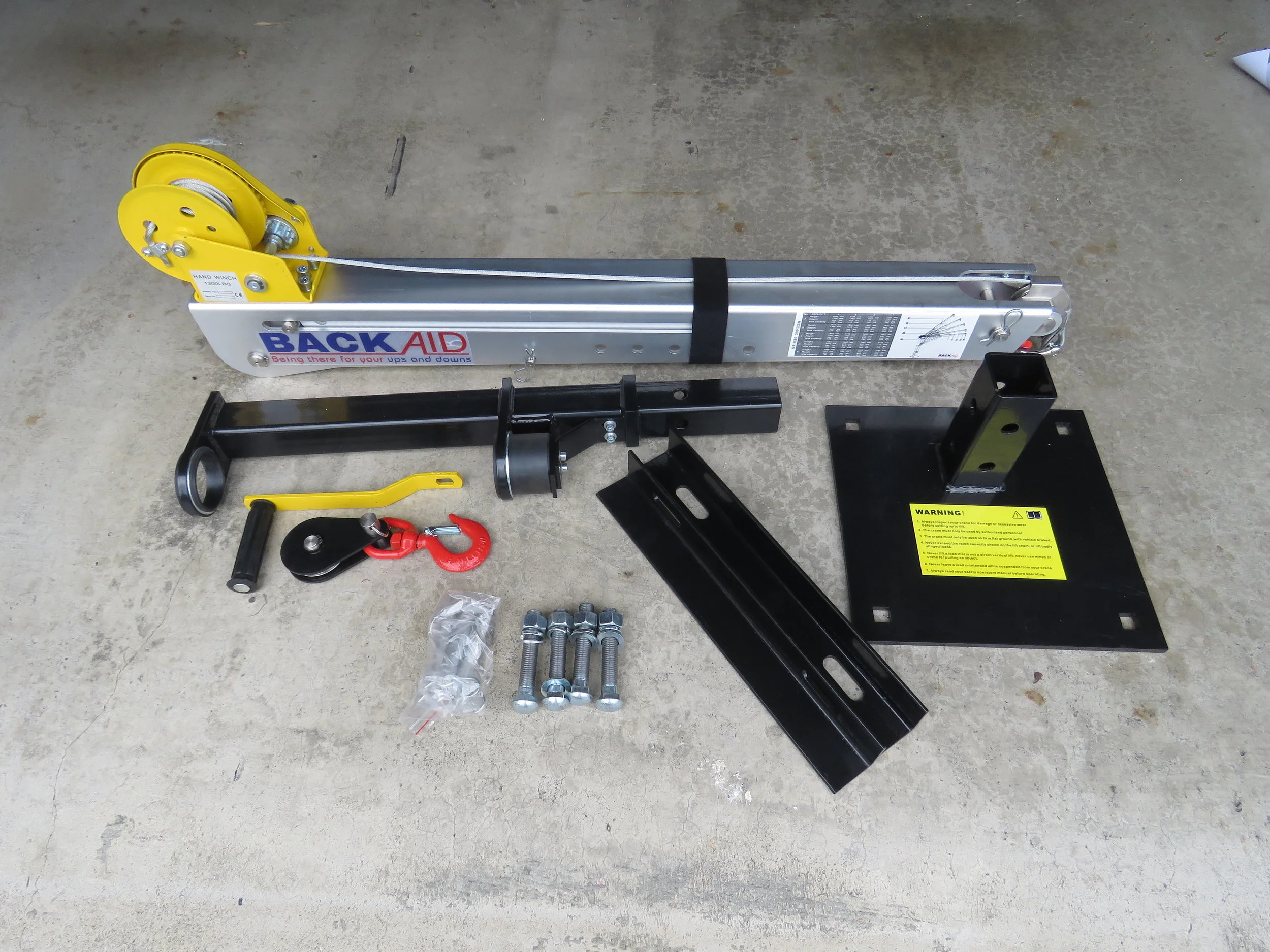

Kit Supplied
| No. | Part Name | Description | Qty |
|---|---|---|---|
| 1 | Base mounting plate | 310x8mm and 60x4mm square tube welding assembly. | 1 |
| 2 | Base bolt down kit | M16*100mm carriage bolts,nuts,flat pad and pad. | 4 |
| 3 | Locking mast pin | OD15*70mm stainless steel | 1 |
| 4 | Base mounting brackets | 50x50x4mm triangular steel | 2 |
Wall Mounting
The wall mount is designed to be used in applications where extra height is required or there is not sufficient room to mount the flat mounting base, examples are on the heard board of truck decks, on the side of service body toolboxes, or mounted on the side of a building structure. Anywhere where a vehicle mount is the preferred option.
Kit Supplied
| No. | Part Name | Description | Qty |
|---|---|---|---|
| 1 | Fixed Seat | 60x4mm square and 10mm steel welded structure | 1 |
| 2 | Fixed Baffle | 400x60x5mm structural steel plate | 2 |
| 3 | Base bolt down kit | M10*80mm carriage bolt assembly | 12 |
| 4 | Locking mast pin | 15x70mm stainless steel | 1 |
Tow Mounting - Ball
This design was added as an advanced version of the tow hitch system, this was for situations where vehicles fitted with tow balls that were not
removable.
Kit Supplied
| No. | Part Name | Description | Qty |
|---|---|---|---|
| 1 | The ball head cover | 2mm steel components. | 1 |
| 2 | Ball head | 1-7/8" structural steel ball head | 1 |
| 3 | The ball head armn | 50x50x4mm square tube | 1 |
| 4 | Locking mast pin | 15x70mm stainless steel | 3 |
Tow Mounting - Hitch
This system is ideal for those who don’t have room for fitting a vertical
or flat mounting base or just a portable system they can use thats not fixed to any particular vehicle, it’s a very simple a quick system to set up for situations where you want a portable mounting device that can be shared between a fleet of vehicle such as trucks, utes, cars, vans, “anything that has a tow ball system. The tow hitch gives flexibility to the user with its adjustable width and height options so it can be setup to suit every lift you set out to do. No engineering is required to use this system.
Kit Supplied
| No. | Part Name | Description | Qty |
|---|---|---|---|
| 1 | Traction fixed connection | 60x4x165mm square tube welding | 1 |
| 2 | Supporting leg | 50x4mm square tube and 5mm steel welding | 1 |
| 3 | Traction link | 50x4mm square tube welding,the length of 950mm | 1 |
| 4 | Locking mast pin | 15x70mm stainless steel | 3 |
Adjustable Stabiliser Leg
Having a Manual leg is not compulsory and is offered as an option you can purchase along with your standard crane kit, depending on the size and weight of the vehicle or structer you have mounted your BACKAID to as to whether a manual leg is recommended, for smaller light weight vehicles like utes it is recommended. Having a manual leg prevents the twisting and movement of the ute structure when the crane is under load and being rotated, this gives a consistent level to the base of the crane as its loaded and rotated which makes slewing alot easier work to the operator specially on loads over 200KG. The manual leg when not in use can be stowed up inside the mounting base tube.
Kit Supplied
| No. | Part Name | Description | Qty |
|---|---|---|---|
| 1 | Support leg assembly | 50x4mm square tube and 5mm thick steel welded components | 1 |
| 2 | Leg support connection | 40x40x4mm square tube | 1 |
| 3 | Locking mast pin | OD15*60mm stainless steel | 1 |
