Accessories / Winch Options
EXTRA LONG MAST
Depending on the application you are using your BACKAID crane in sometimes some extra height to the crane boom makes all the difference, so with the extra-long mast this give an additional 200mm to the over all height of the BACKAID crane, when stowed and working with the boom out.
Kit supplied
| No. | Part Name | Description | Qty |
|---|---|---|---|
| 1 | Short mast | 50x50x4x650mm support welded square tube. | 1 |
Snatch Block
The snatch block is used to lower the pulling load on the winch drum and to make turning the winch handle easier for the operator, Every BACKAID crane kit has a snatch block included, its important and also stated in the crane manual that any load the operator intends to lift over 200KG must set up the crane using the snatch block.

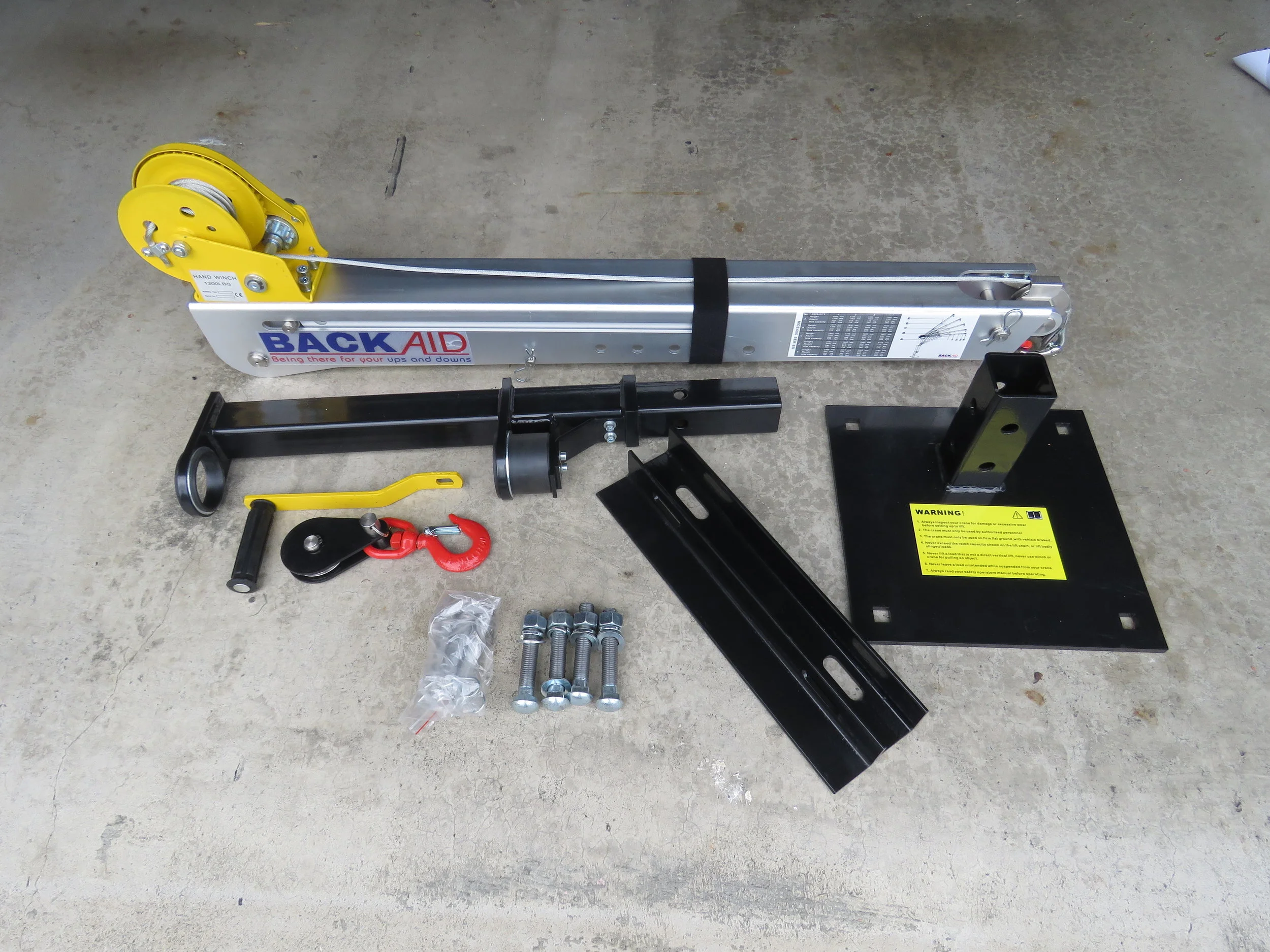

KIT SUPPLIED
| No. | Part Name | Description | Qty |
|---|---|---|---|
| 1 | Pulley assembly | Od60 stainless steel pulley and baffle assembly | 1 |
| 2 | Locking mast pin | 40x40x4mm square tube | 1 |
| 3 | Self rotating hook | The rated load of 1 tons of structural steel hook | 1 |
Winch Options

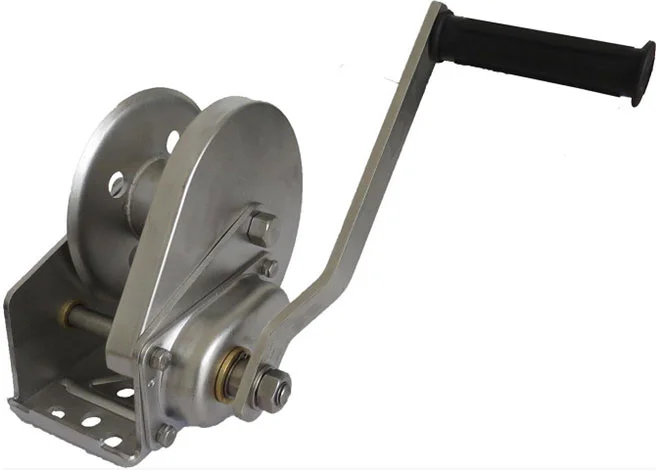

STAINLESS STEEL WINCH
With the vast range of applications the BACKAID crane can be used in, a stainless steel winch is often required for marine or food industrial applications, this winch is designed and rated to the same as the standard winch supplied. To upgrade to the stainless winch please inquire to your BACKAID crane provider.

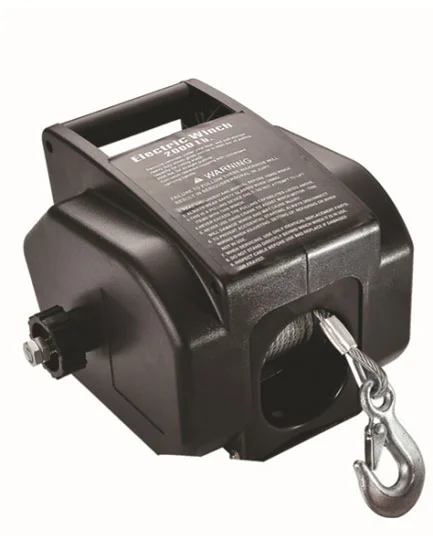

SQUARE ELECTRIC WINCH
With everyone’s demands and budget being different the electric winch is an upspec option available to give the operator the ability to lift and lower the load by a hand remote control, in place of having to wind a handle on a hand winch, with 12 and 24 volt options the choice is there to suit any application you have. On set up you will be required to wire the winch up to the battery power source.
